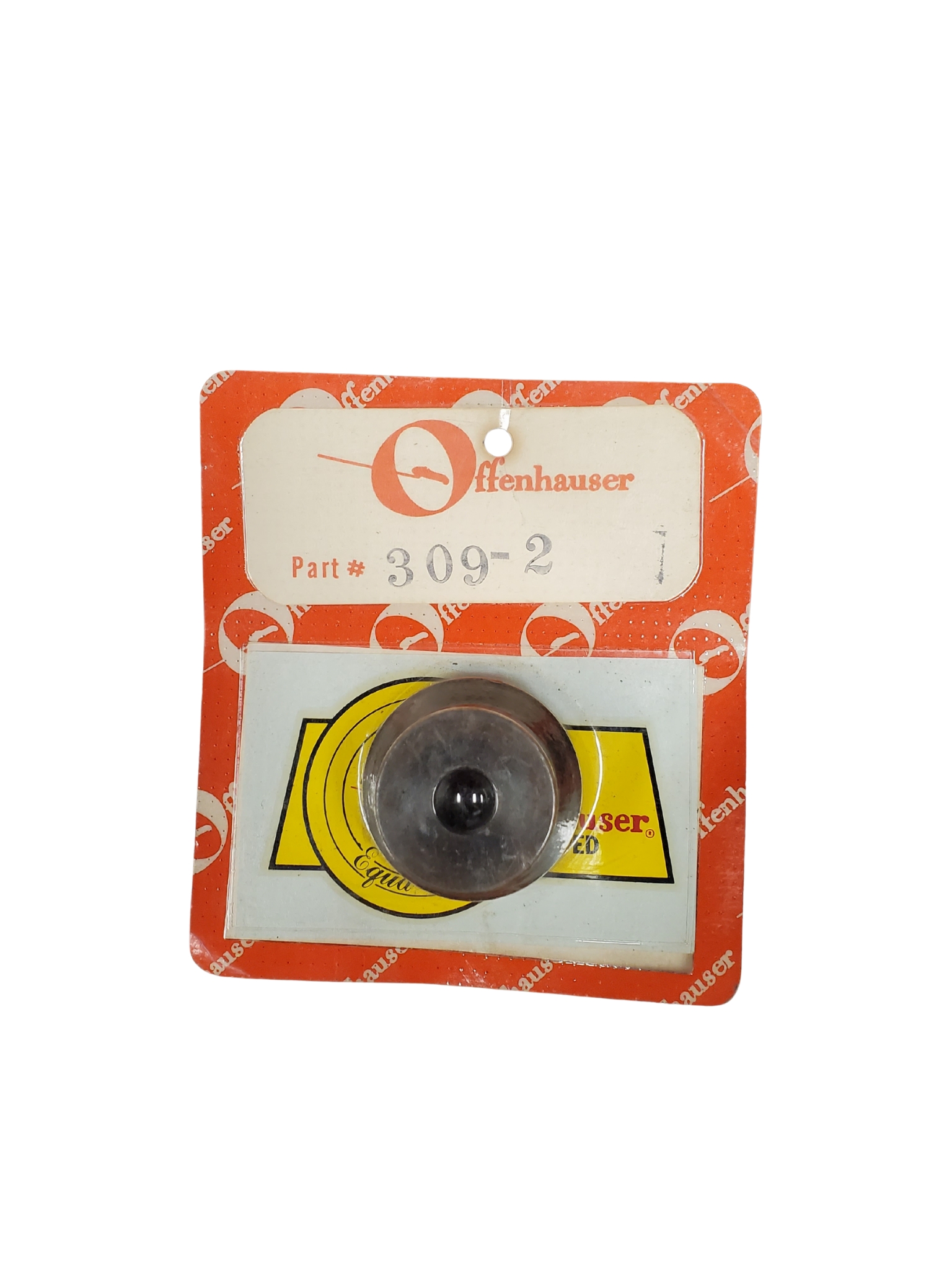

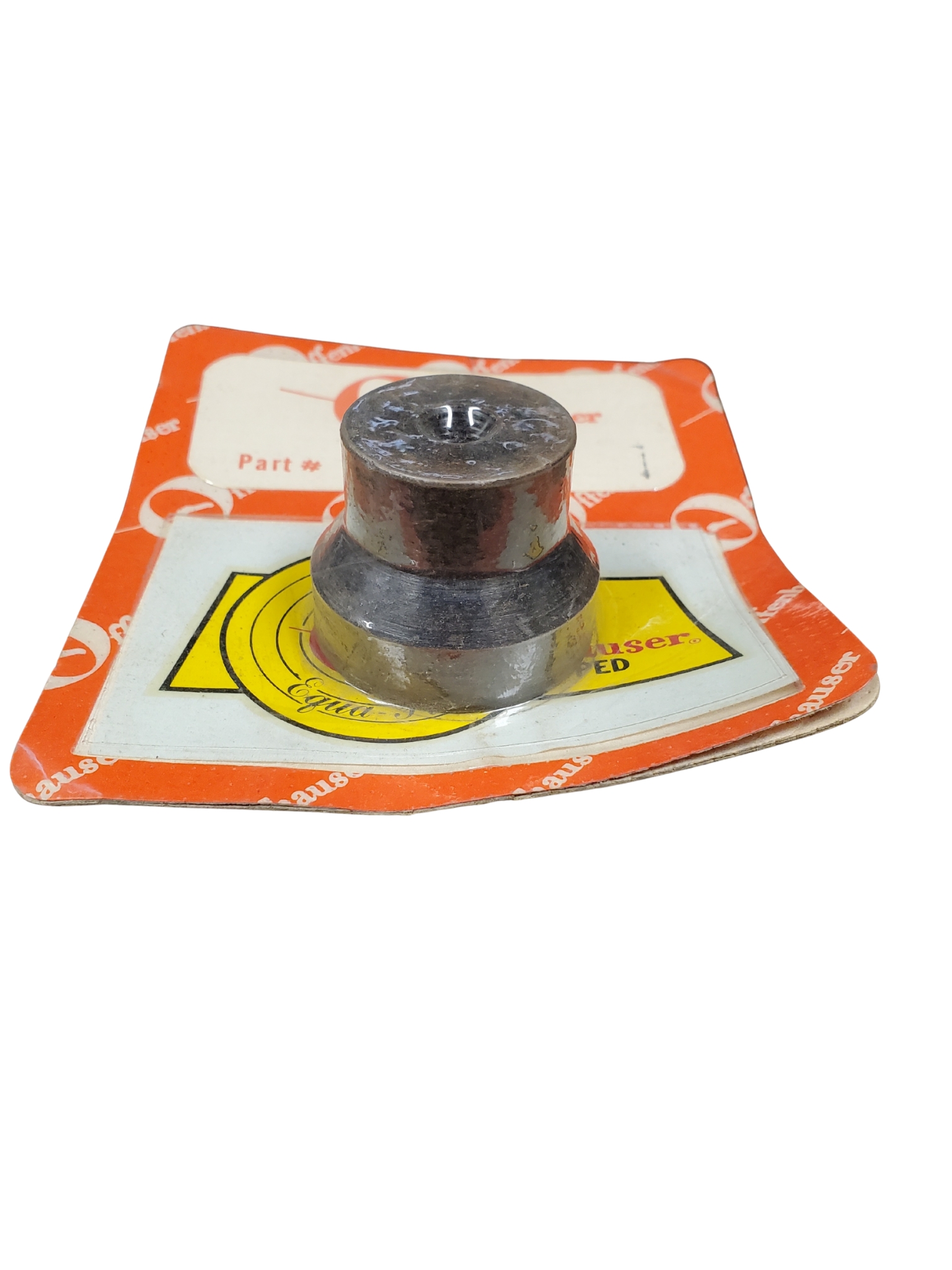

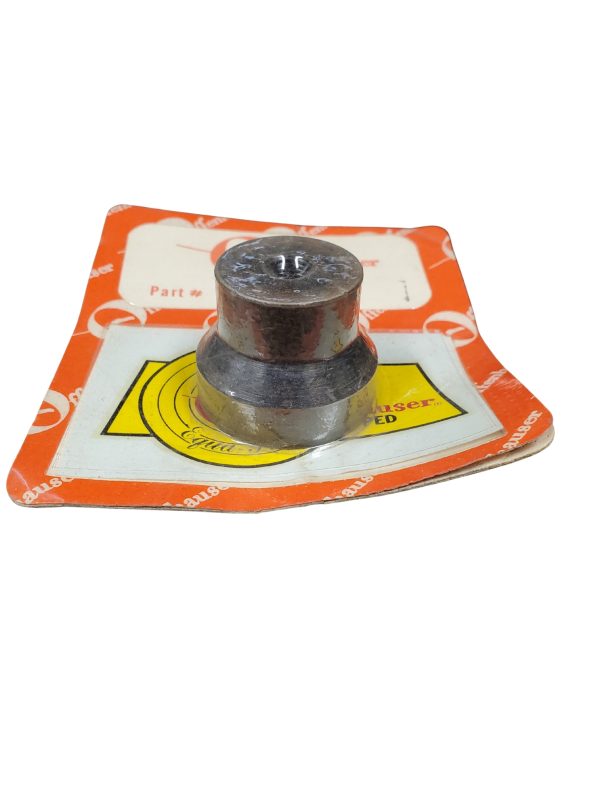

0309-2 Offenhauser Buick Pilot Bearing Adapter

Description

The Offenhauser 0309-2 part is an adapter that works with Buick Nailhead V8 engines (such as the 264 or 322 from the early- to mid-1950s) to adapt them to early Ford manual transmissions (three-speed). There are two versions, 0309-1 and 0309-2, which correspond to different pilot bushing/bearing sizes required by different Buick crankshafts. The difference between the two is primarily the size of the hole in the crankshaft for the pilot bushing, so which one you need depends on your engine’s specific crankshaft dimensions.

• Engine Compatibility: Buick Nailhead V8s (examples: 264 or 322)
• Transmission Compatibility: Early Ford three-speed manual transmissions (not automatic transmissions, not modern transmissions)
• Vehicle Fitment: Commonly used for hot rods or custom builds where you want to install a Buick Nailhead engine and run an early Ford manual gearbox

You must measure the hole diameter in the back of your Nailhead’s crankshaft to determine if you need the 0309-1 or 0309-2 bushing adapter. The 0309-2 is for applications with a 1-3/8″ crankshaft pilot bore dimension. Always verify your dimensions to ensure proper fitment with your transmission.
